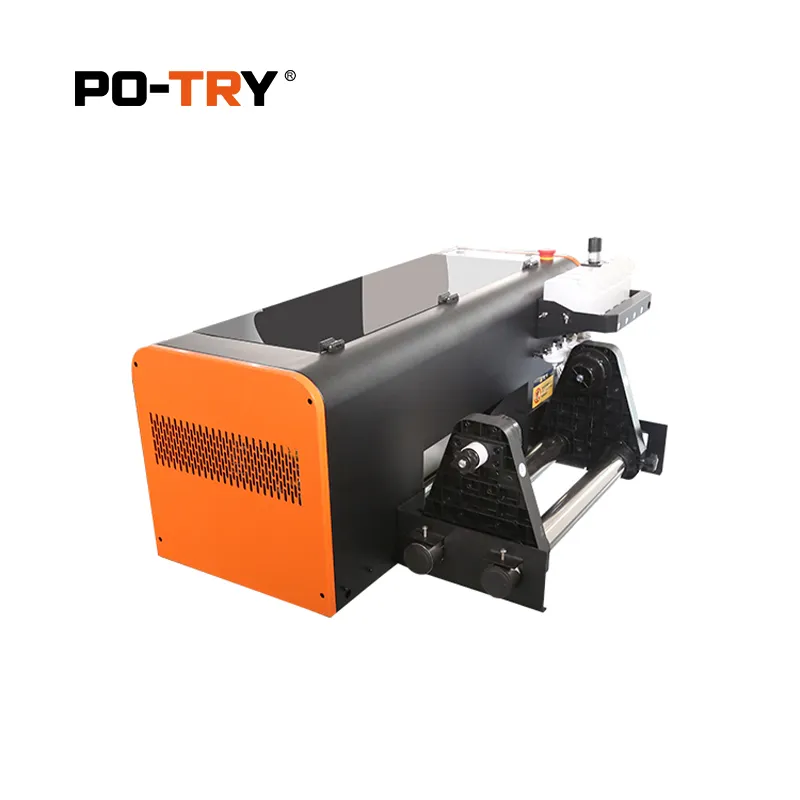

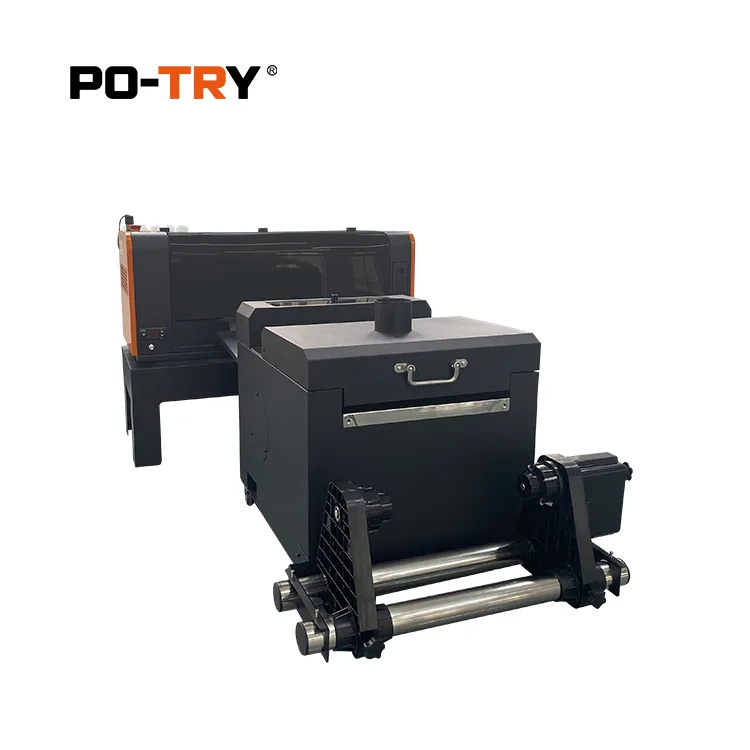

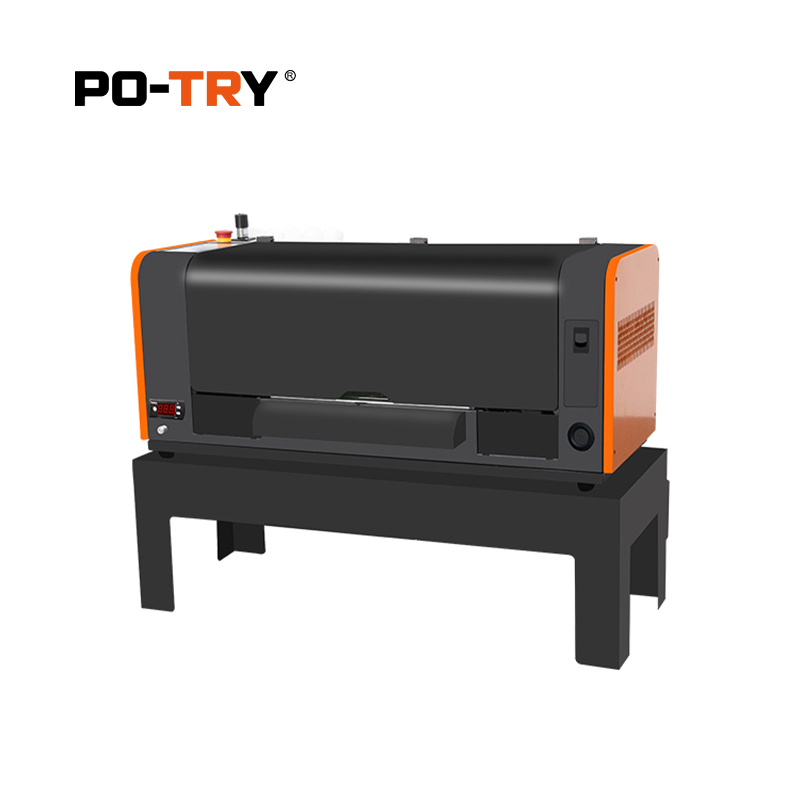

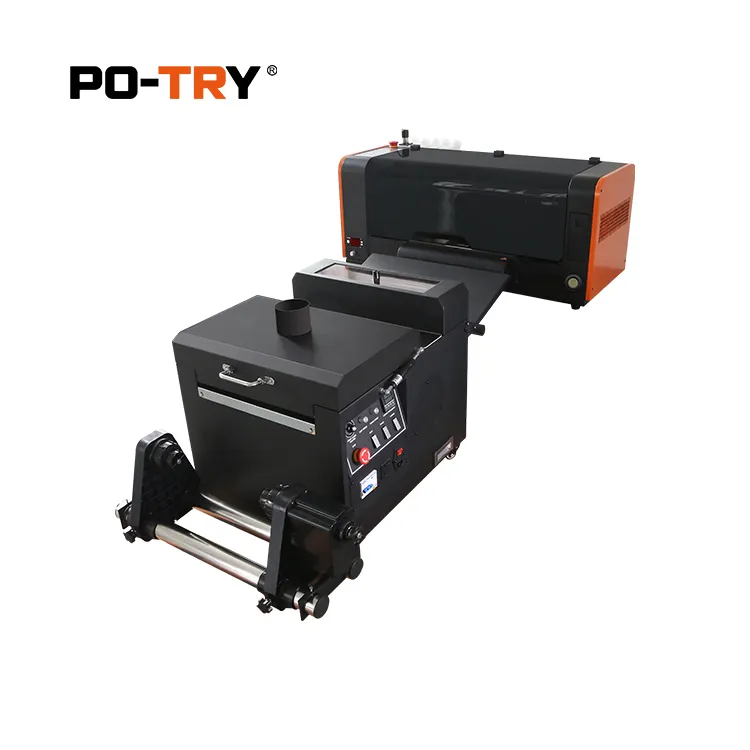

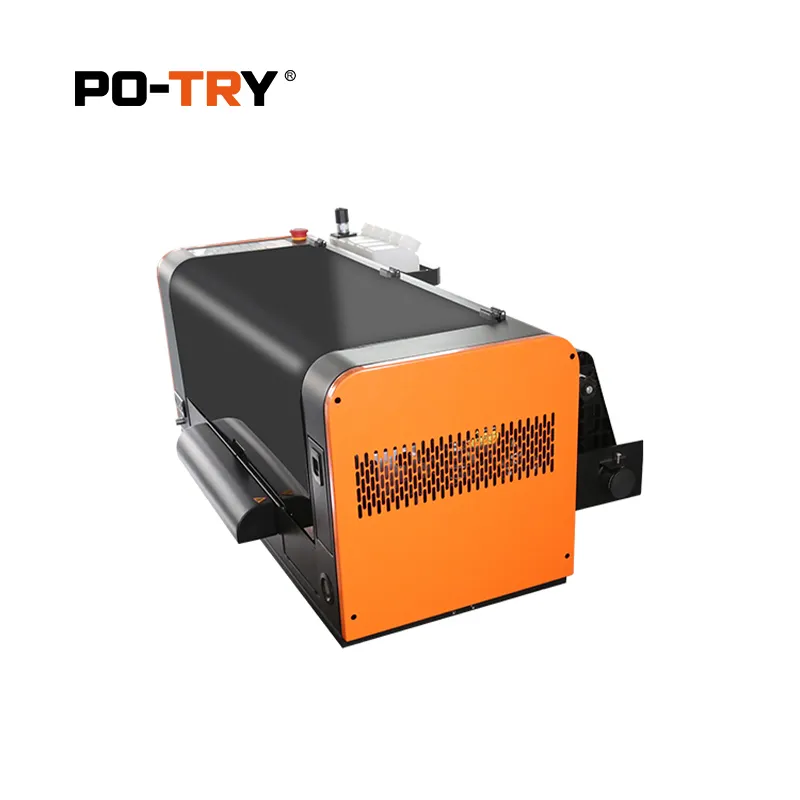

A3 XP600/F1080-A1 DTF Printer

Print Head: Epson XP600 Optional

Print Head Number: 2 Print Head

Print Media: PET DTF Film
$99999
$99999
Quantity
  • Detail
    DTF Printer A3
    Product Feature
    2 PRINTHEADS 30CM DTF PRINTER
    Model HT-0302XH
    Printhead Type F1080-A1
    Printhead Ouantity 2
    Printing Speed 12pass : 360x2160DPI   2.9m2/H
    Printing Width 300mm
    Ink Type Pigment Ink
    Ink Capacity 5*0.5L
    File Format TIF
    Color Mode KCMYW
    Take Up System Automatic take up system
    Take Up & Drying System Powder shaker integrated system for take up and drying
    PC Requirements W7 or above, 64 bit, CPU Processor i5 or above, 8G Storage, C disk with solid state hard drive 120G or above. Attached disk 1TB, Gigabit Ethernet port
    Input Voltage AC100V~120V(Advance customization),AC220V~250V,50/60Hz
    Power Consumption Printer: 700W
    RIP Software Maintop 6.1/RIIN/CADlink/PP
    Printer Size L950mm*W620mm*H420mm(Printer)
    Packing Size L1050mm*W650mm*H600mm(Printer)
    Net Weight 51KG(Printer)
    Gross Weight 82KG(Printer)

     Model number PS-0303
     Power supply  AC220V ± 10%. 50 / 60 ± 1Hz，AC110V ± 10% (Advance customization)
     Power (watt)  730W
     Take up system  Single power receiving system
     Size of tunnel furnace  L300mm*W300mm
     Machine size  L880mm*W560mm*H600mm
     Outer box size  L710mm*W600mm*H730mm
     Net weight  32.6KG
     Gross weight  52KG
     Compatible printer  HT-0302XH / HT-0302KH

    1. Equipped with original Epson-authorized printheads
    high printing accuracy

    printhead,print head,i3200 printhead

    2. Suitable for all clothes, and textile fabric
    you can do personalized custom printing of t-shirts, sweaters, jerseys, jeans, canvas bags, and other clothing textile fabrics, such as aprons, and even shoes.

    3. Unique ink chain design
    Separate discharge of ink tubes and circuits to reduce respective interference

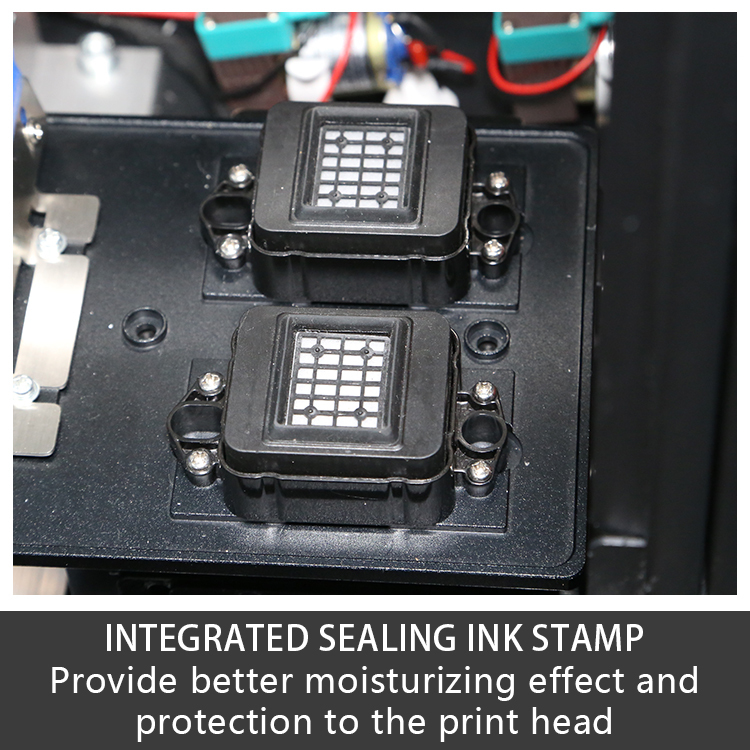

    4. Integrated sealing ink stamp
    Provide better moisturizing effect and protection to the print head

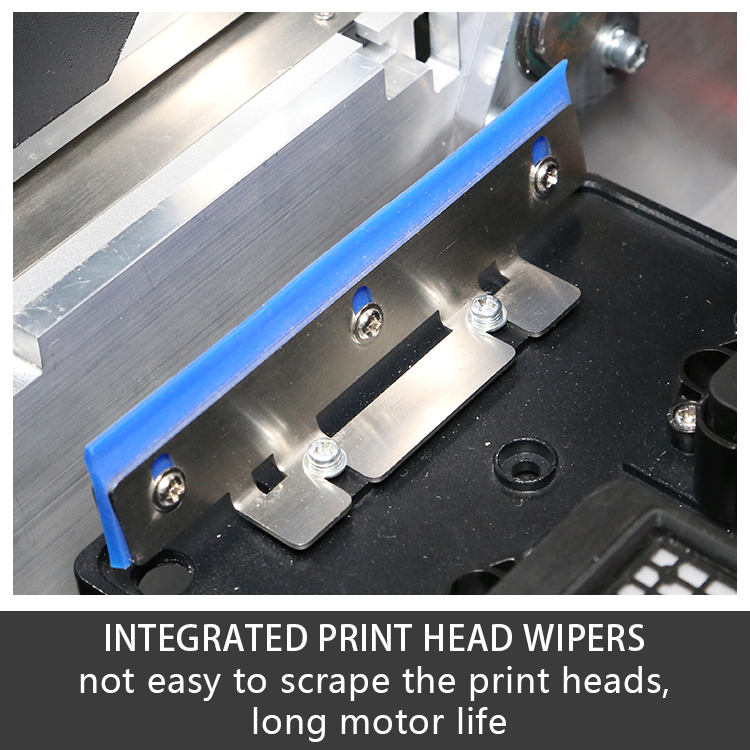

    5. Integrated Print Head Wipers
    Not easy to scrape the print heads and long motor life

    6. Intelligent Control Pane
    Easy adjustment of the printing head and printing position

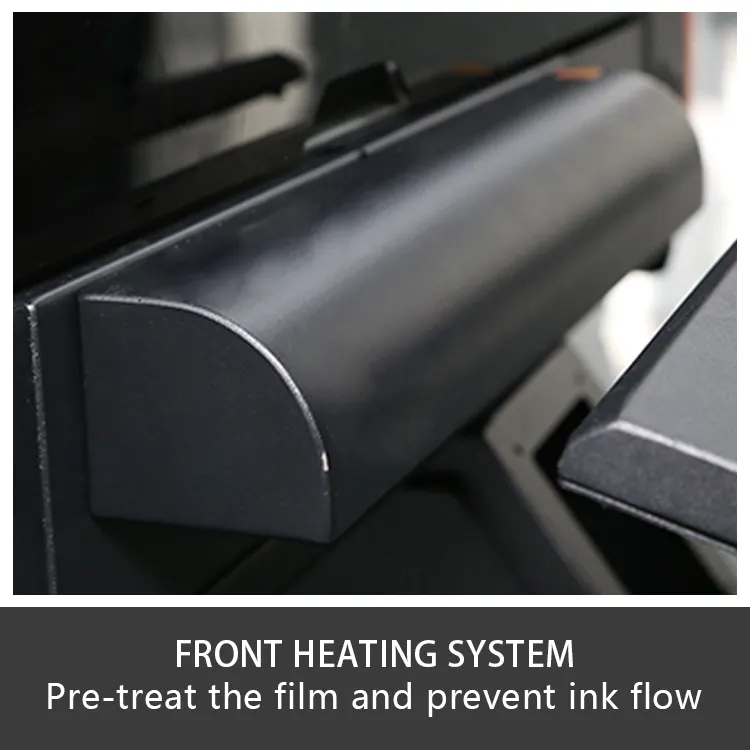

    7. Front heating system
    Pre-treatment the film and prevent ink flow

    8. Section Adjustment Knob
    Suitable for all kinds of print media

    9. Built-in temperature and humidity indicator
    Better observation of the temperature and humidity inside the printer

    10. Built-in Storage Box
    Better storage printers' spare parts to prevent loss

    11. Ink Tank Capacity Optional
    200ml/500ml ink bucket optional

    12. CMYKW Ink Filter
    Prevents ink deposition and protects the print head

    13. Waste Ink Collection Box
    Collect waste ink, Protect the environment

    14. White Ink Circulation System With Peristaltic Pumps
    It can be opened for a long time without damaging the ink tube
